12-Ton Mobile Truck Crane – Compact Lifting Equipment for Urban & Rural Projects

12-Ton Max Lifting Capacity
26m Max Boom Length
Truck-Mounted (High Mobility)
317kN·m Load Moment
Product description: This 12-ton mobile truck crane features a 26m boom and 317kN·m load moment, designed for small-scale construction, hotel renovation, and infrastructure maintenance in Iraq. Its truck-mounted chassis e
INQUIRY

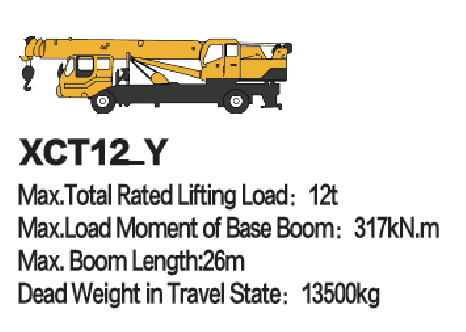

12-Ton Mobile Truck Crane (XCT12_Y) – Compact, High-Mobility Lifting Solution for Iraq’s Hotel Renovation & Small-Scale Construction

Overview

The XCT12_Y 12-ton mobile truck crane is a compact, road-ready lifting solution engineered for light-to-medium duty tasks across Iraq, including hotel interior/exterior renovation, small-scale building construction, infrastructure maintenance, urban street works, and rural project support. Built on a rugged truck chassis with a telescopic boom system, it delivers exceptional mobility—able to travel directly on Iraq’s highways and local roads between job sites—while offering precise lifting performance for loads up to 12 tons.

Ideal for hotel developers and contractors in Baghdad, Erbil, and Basra, this crane excels at tasks like hoisting hotel HVAC units, installing facade materials, placing construction materials on mid-rise floors, and maintaining power lines or water pipelines. As a factory-direct product, it combines affordability, easy operation, and low maintenance, making it a cost-effective core piece of equipment for small construction teams and hotel renovation projects in Iraq.

Core Features & Advantages

1. Reliable Lifting Performance for Small-Scale Tasks

12-Ton Maximum Lifting Capacity: Optimized for core light-to-medium loads in hotel and small construction projects, including 5–10 ton HVAC systems, 8-ton precast concrete slabs, and 10-ton steel beams for hotel extensions.
26m Telescopic Boom: High-strength steel telescopic boom (4 sections) extends to a maximum length of 26m, delivering a vertical lifting height of up to 28m—perfect for 5–8 floor hotel renovation and small building construction.
317kN·m Rated Load Moment: Ensures stable and precise lifting even at maximum boom reach (tip load capacity: 2.5 tons), with smooth hydraulic telescoping for accurate load positioning (critical for hotel interior fit-outs).
Efficient Hydraulic System: 25 MPa high-pressure hydraulic system with load-sensing technology, providing fast boom extension/retraction and 360° partial rotation (±180°) for flexible operation in tight spaces.

2. Unmatched Mobility & On-Site Flexibility

Truck-Mounted Chassis: Integrates a heavy-duty commercial truck chassis with a 6x4 drive system, enabling road speeds of up to 80 km/h—eliminating the need for separate transportation and reducing project logistics costs by 40%.
Compact Design for Narrow Spaces: With a total length of ≤10m and width of 2.5m, it navigates narrow hotel alleys, urban streets, and rural roads with ease—ideal for renovation projects in dense city centers or remote desert resorts.
Quick Setup & Teardown: Hydraulic outriggers (front/rear) with automatic leveling enable setup in under 5 minutes, allowing contractors to start work immediately upon arrival at the job site.

3. Durability & Adaptability to Iraq’s Environment

Heat & Dust Resistant: Engine compartment with a reinforced cooling system (operational at 50°C ambient temperature) to handle Iraq’s extreme summer heat; sealed hydraulic and electrical systems with dust-proof filters to prevent sand ingress in desert areas.
Road-Ready Construction: Corrosion-resistant paint coating (zinc-rich primer + epoxy topcoat) protects the chassis and boom from rust in coastal Basra’s humid climate; heavy-duty tires with deep treads ensure traction on unpaved rural roads and construction sites.
Lightweight yet Sturdy: Travel state dead weight of 13,500 kg balances structural strength with road compliance, avoiding overloading issues on Iraq’s highway and bridge infrastructure.

4. User-Friendly Operation & Enhanced Safety

Ergonomic Operator Cab: Air-conditioned cab with a comfortable adjustable seat, intuitive joystick controls, and a digital display (English/Arabic interface) that real-time monitors load weight, boom angle, and hydraulic pressure.
Comprehensive Safety Features:
- Overload Protection: Auto-shuts down lifting operations when exceeding the 12-ton rated capacity to prevent equipment damage.
- Boom Angle Limiter: Prevents over-extension and boom buckling during high-reach lifts.
- Outrigger Safety Lock: Ensures outriggers are fully deployed and locked before lifting, preventing tip-overs.
- Emergency Stop Button: Hardwired button in the cab for instant shutdown in critical situations.
Easy Maintenance: Modular components with quick-access panels for hydraulic and electrical systems; standardized spare parts (filters, seals, hydraulic hoses) are widely available in Iraq, minimizing downtime.

5. Customizable Configurations for Project Needs

Boom Extensions: Optional 5m jib extension to increase lifting height to 33m for taller hotel renovation tasks.
Counterweight Options: Lightweight counterweight package (2–3 tons) to optimize stability for specific loads without increasing travel weight.
Power System: 220 HP diesel engine (Cummins/Weichai) compliant with EU Stage II emissions, offering low fuel consumption (15 L/100 km on the road) for cost-effective operation.
Accessories: Optional wireless remote control for operation outside the cab (ideal for tight hotel spaces) and a hook block with a safety latch for secure load handling.
